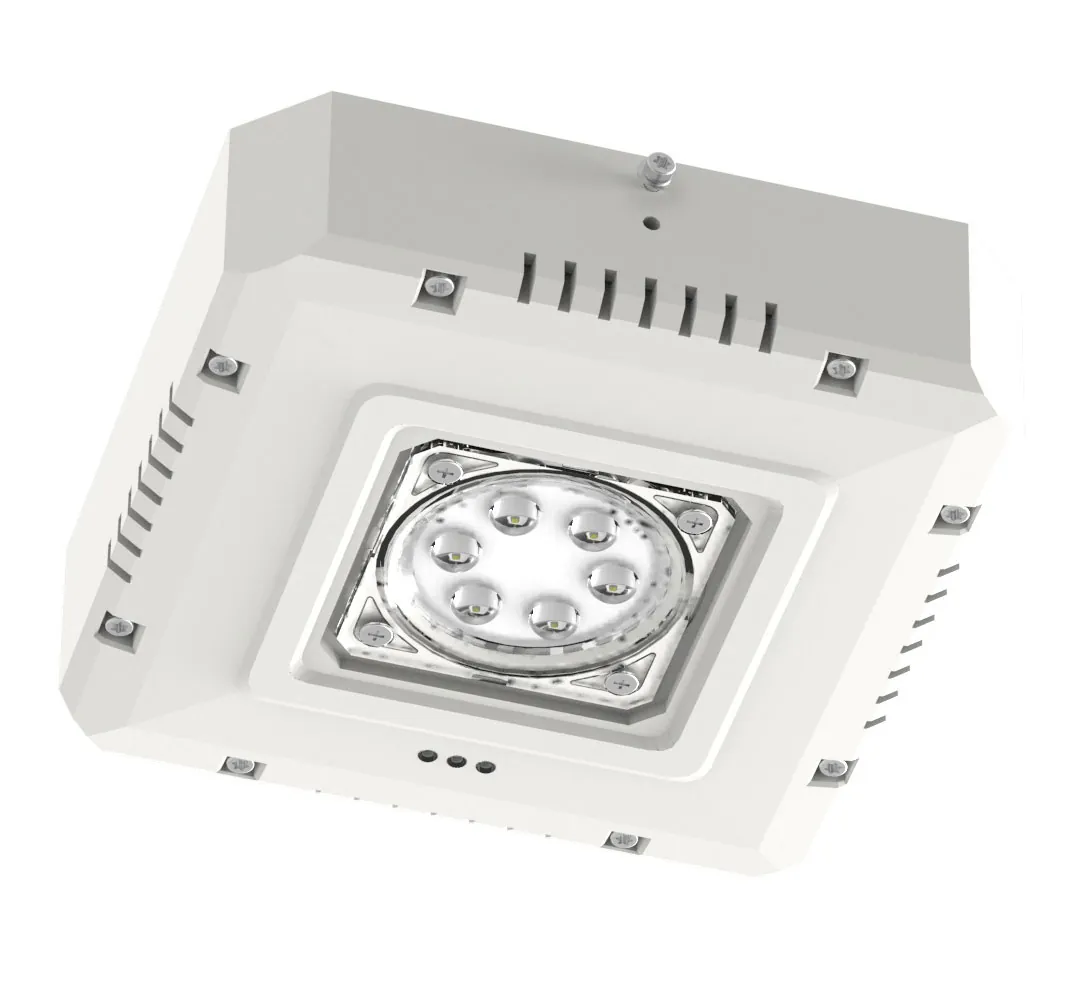

High Ceiling Emergency LED Luminaires
Our multipurpose stand-alone self-contained emergency high ceiling LED luminaires benefit from a sleek modern design and the high-end technology which is common to all of our products. With its high lumen output and low stand-by power consumption (<0.5W) it can be used in either maintained or non-maintained applications. Designed to IP65 ingress protection and IK10 Impact protection requirements they are pre-wired and can be used in many indoor and outdoor lighting schemes.
The Advanced Self-Test (AST) technology built in as standard means it can be used either as part of a Manual Test (MT) lighting scheme or with the Advanced Remote Control (ARC) to add additional functionality.
The High Ceiling Emergency Luminaire is manufactured in compliance with current standards including BS 60598-2-22.
The High Ceiling Emergency Luminaire can be mounted either on ceilings (both directly or suspended) or walls and comes with the corridor lens as standard however, it can be adapted for other environments with Accessory optional lenses.
Download the datasheet, photometry files (IES and LDT) and spacing tables for each product below.
| Part number | Power output | Lumen output | Construction | Configuration | Testing facility | Remote control Part Number |
|---|---|---|---|---|---|---|
| HCA5-C-AST | 5W | 2300/850lm | IP65 / IK10 | Maintained / Non-maintained | Advanced Self Test (AST) |
High Ceiling Emergency Luminaire – Accessories
| Part number | Description |
|---|---|
| HCA-B | Bracket |
| HCA-L45 | 45°Lens |
| HCA-L80 | 80°Lens |
| HCA-L125 | 125°Lens |
Questions
How is the High Ceiling luminaire mounted?

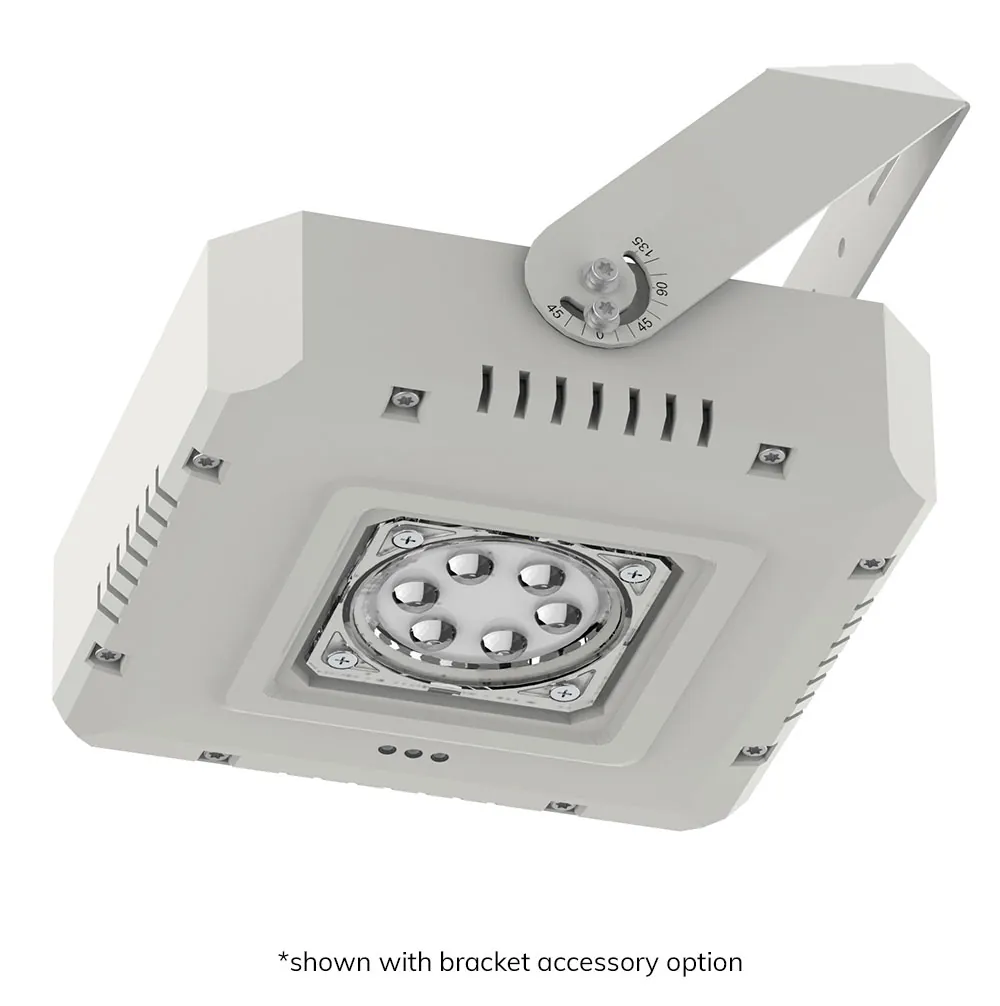

On a ceiling, directly or suspended, or on a wall. It comes pre-wired, with a bracket (HCA-B) available.
Which lenses are there?
It comes with the corridor lens. Optional 45°, 80° and 125° lenses (HCA-L45, HCA-L80 and HCA-L125) adapt it to other spaces.
How much light does it give in an emergency?
850 lumens of constant emergency light from 5W for 3 hours. The battery recharges in 8 hours (the first charge takes up to 16), and standby power is low (0.5W).
Can it be used outdoors?
Yes. It is IP65 (weatherproof) and IK10 (impact resistant), for indoor and outdoor schemes.
Is it maintained or non-maintained?
Either: it can be used in maintained or non-maintained schemes.
How is it tested?
Advanced Self-Test (AST) is built in as standard, so it can be part of a Manual Test scheme or used with the ARC remote control for more functions.
Which standards does it meet?
It is made to BS EN 60598-2-22.
What warranty does it have?
Up to 5 years on the luminaire and battery. Every product has 1 year as standard, and 5 years from the date of invoice once you register it within 6 months of purchase (a new product, bought from Z10 or an authorised reseller).
Where is the datasheet?
On the Specifications & downloads tab, beside each model: its datasheet, and the IES and LDT photometric files and spacing tables where it has them. For help with a layout, ask for our free lighting design advice.
