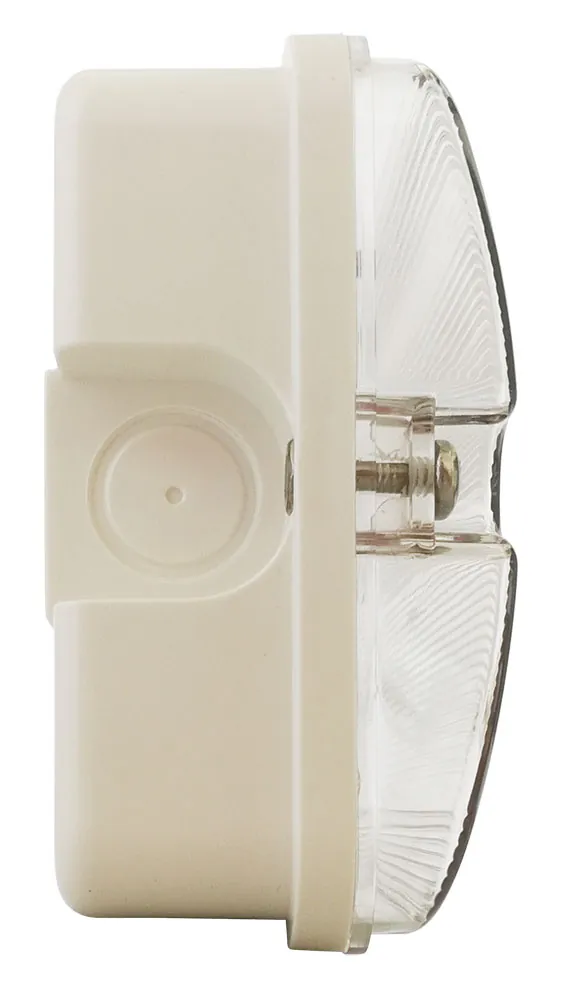

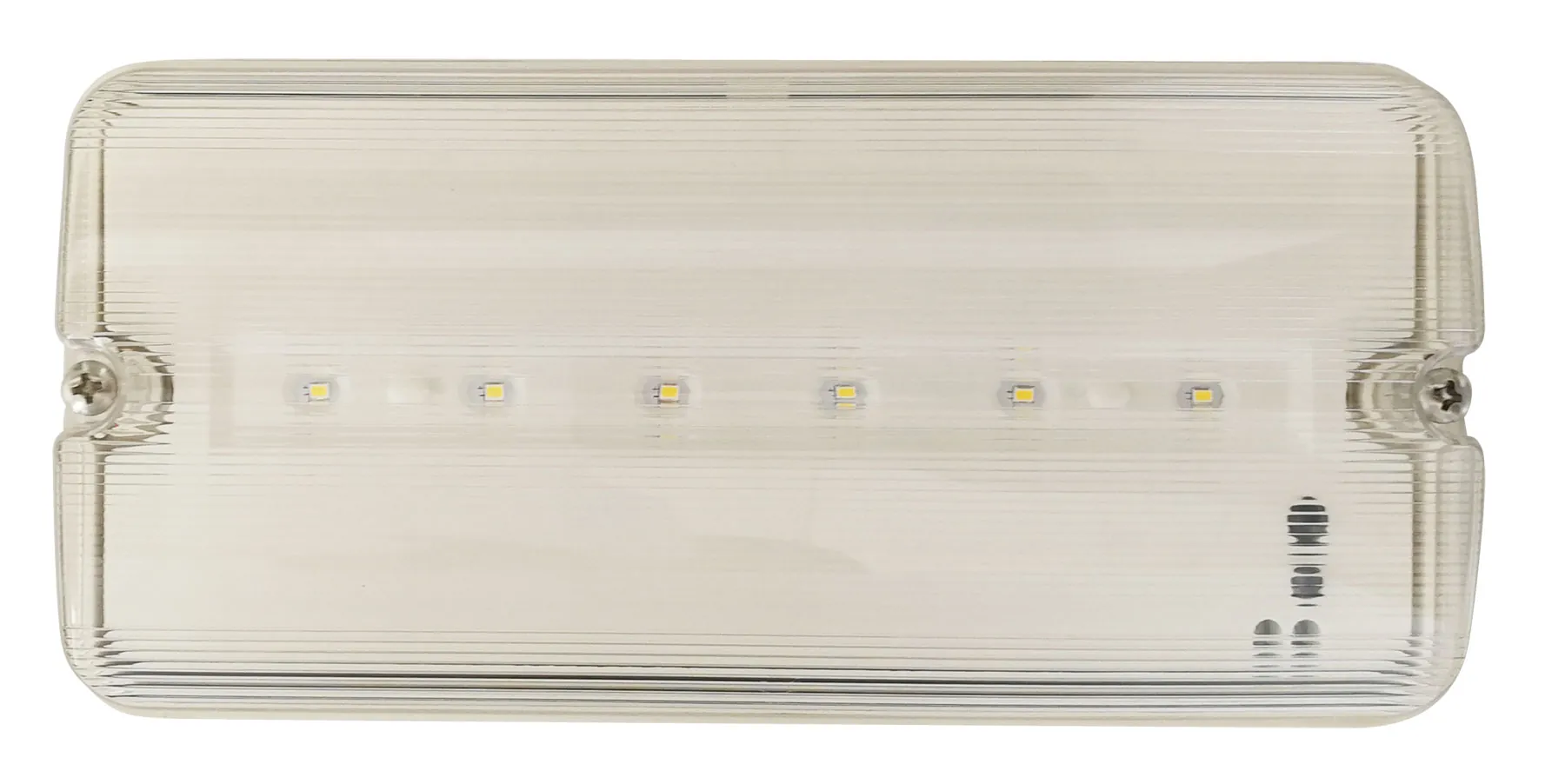

Mini GRANITE Emergency LED Bulkhead
Our Mini Granite bulkhead uses LED technology to provide the best results by increasing spacing performance and maintaining a low energy usage. It offers a staggering 170 lumens for the 1.5W power output, all thanks to the design and technology that drives all our products. The luminaires can be wired for either maintained or non-maintained operations and benefit from an IK10 Impact Protection rating and IP65 Ingress Protection, making them suitable for both indoor and outdoor installations as well as those subject to vandalism abuse.
Our mini bulkhead integrates our Advanced Self-Test (AST) functionality* and together with Advanced Remote Control (ARC) it provides significant maintenance savings and peace of mind for all customers as they require no manual testing.
At just 199 x 95mm is one of the smallest bulkheads on the market and it is easy and fast to install. It provides high versatility for a large number of applications ideally for new builds.
Fully Certified and powered by an environmentally friendly Li-Ion battery, our product provides an outstandingly low stand-by power consumption (0.5W) due to its well-designed circuit board.
*Please note that the Self-test function is disabled by default. If self-test function is required please use remote control ARC to enable it.
Download the datasheet, photometry files (IES and LDT) and spacing tables for each product below.
| Part number | Power Output | Lumen output | Construction | Configuration | Testing facility | Downloads |
|---|---|---|---|---|---|---|
| BHB1.5-AST | 1.5W | 170lm | IP65 / IK10 | Maintained / Non-maintained | Advanced Self Test (AST) |
*Please note that the Self-test function is disabled by default. If self-test function is required please use remote control ARC to enable it.
Questions
How big is the Mini GRANITE bulkhead?
Just 199 x 95 mm: one of the smallest bulkheads on the market, easy and fast to install, and ideal for new builds.
Can Mini GRANITE be used outdoors?
Yes. It is IP65 (weatherproof) and IK10 (impact resistant), for indoor and outdoor installations, including places at risk of vandalism.
Is Mini GRANITE maintained or non-maintained?
Either: it can be wired maintained or non-maintained.
How much light does Mini GRANITE give?
170 lumens at 1.5W (BHB1.5-AST), for the full 3-hour emergency duration. The battery recharges in 8 hours (the first charge takes up to 16).
How is Mini GRANITE tested?
It has Advanced Self-Test (AST). Self-test is switched off when it leaves us: switch it on with the ARC remote control, which also runs functional and full duration tests and checks the battery without a ladder. There is no Eyeris version of Mini GRANITE; the standard GRANITE has one.
What battery does Mini GRANITE use?
An environmentally friendly lithium-ion battery, with a standby power of just 0.5W.
What warranty does Mini GRANITE have?
Up to 5 years on the luminaire and battery. Every product has 1 year as standard, and 5 years from the date of invoice once you register it within 6 months of purchase (a new product, bought from Z10 or an authorised reseller).
Where is the Mini GRANITE datasheet?
On the Specifications & downloads tab, beside each model: its datasheet, and the IES and LDT photometric files and spacing tables where it has them. For help with a layout, ask for our free lighting design advice.
